PROFESSIONAL

FAST

SMART

POWERFUL

PRODUCT INTRODUCTION

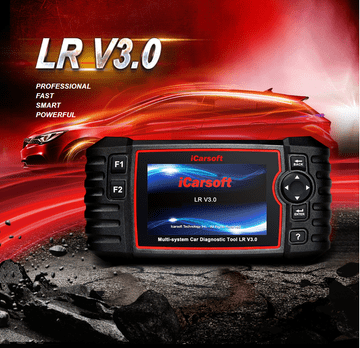

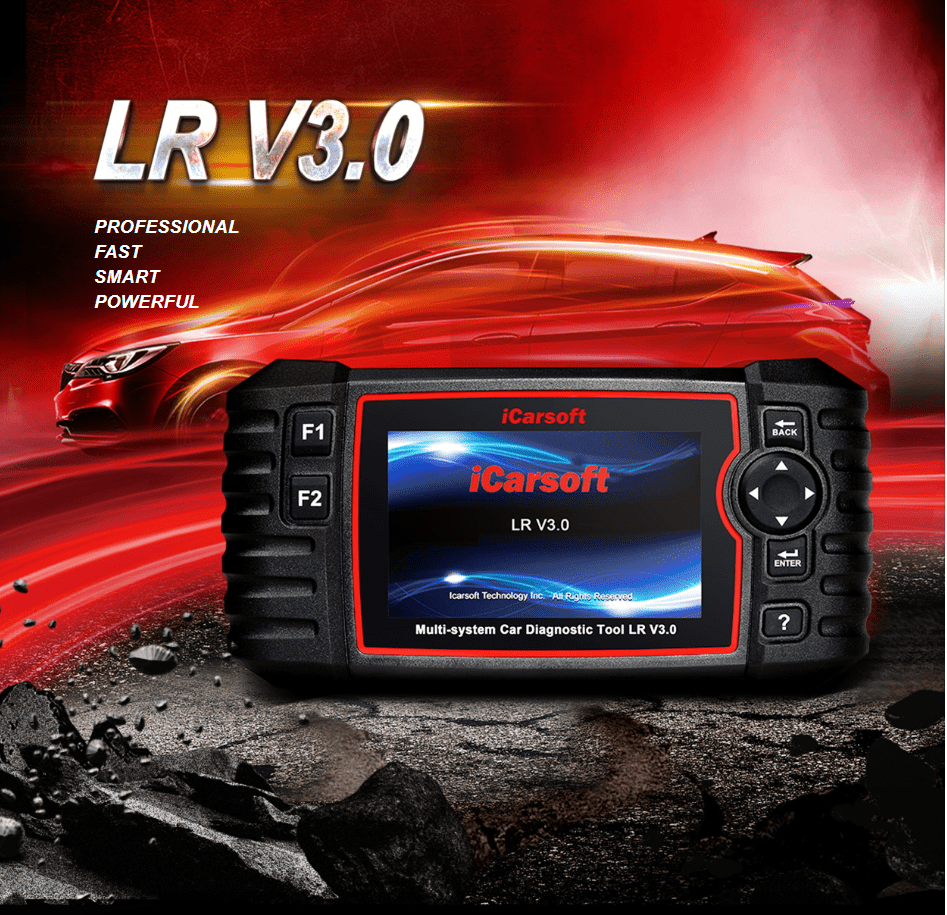

ICARSOFT LR V3.0 IS A PROFESSIONAL AND POWERFUL VEHICLE FAULT DIAGNOSIS TOOL FOR LANDROVER/JAGUAR DEVELOPED BY ICARSOFT TECHNOLOGY INC. WITH A 4.0" TFT LCD AND UNIQUE DIAGNOSTIC SOFTWARE, IT FEATURES FULL ECU DIAGNOSIS OF SINGLE VEHICLE BRAND AND TEST MODES MAINLY INCLUDE: CANBUS, ISO9141, KWP2000, AND J1850 ETC. IT ENABLES TECHNICIANS TO ACCURATELY DIAGNOSE COMPLEX PROBLEMS.

TWENTY SUPER ADVANTAGES

Diagnose Single Brand of most Models(OBDII-16DLC)

Steering Angle Sensor (SAS) Calibration

Full System Diagnosis

ABS Bleeding(BLD)(Some vehicles do not enjoy this function)

Auto identify technology

Injector Coding (INJ)(Some vehicles do not enjoy this function)

Actuation Test / Bi-directory Test

Read &Clear DTC

Support Freeze Frame of Fault Code functions

Read Live Data

Supports Oil Service Reset

supports Battery Test

Electronic Parking Brake(EPB) system maintenance

Supports Data Review and Print

Battery Management System (BMS)(Some vehicles do not enjoy this function)

Full Speed Upgrade via Computer

Diesel Particulate Filter (DPF) Regeneration Control System (Some vehicles do not enjoy this function)

4.0” TFT LCD, 480*320 Pixels

Supports Multi-Language

Electronic Throttle Control System(ETC)



READ &CLEAR CODES FOR ALL AVAILABLE SYSTEMS.

DISPLAY LIVE DATA IN TEXT, GRAPH & ANALOG FOR EASY DATA REVIEW.

ACTUATION TEST / BI-DIRECTORY TEST IS USED TO ACCESS VEHICLE-SPECIFIC SUBSYSTEM AND COMPONENT TESTS.

THE LR V3.0 CAN RECORD THE VEHICLE TEXTS HISTORY AND IDENTIFY THE VEHICLE INFORMATION AUTOMATICALLY. ALSO KEEP THE LIVE DATA INFORMATION.

PRODUCT FEATURES:

1. iCarsoft LR V3.0 can do it all-reads and clears trouble codes on most of the systems such as engine, transmission,ABS and airbag etc.

2. Support OBDII/EOBD Ten Modes of Operation.

3. Read Live Data.

4. Full ECU Diagnosis.

5. Applies to the single Brand of most of the Models which equipped with OBDIl-16 DLC.

6. Easy To Use With Silicone Keys.

7. Auto VIN technology can automatically identify model and year information in notime.

8. Actuation Test / Bidirectory Test is used to access vehicle-specific subsystem and component tests.

9. Support Freeze Frame of Fault Code functions.

10. Oil Light/Service Reset: Support service lamp reset.

11. Electronic Parking Brake (EPB) system maintenance deactivates and reactivates the EPB system for replacement and initialization.

12. Battery Management System (BMS), registers new battery to the BMS while battery replacement.

13. Diesel Particulate Filter (DPF) regeneration control system, requests the DPF regeneration process while DPF blockage and turn off the DPF indicator.

14. Electronic Throttle Control system (ETC) relearns the throttle valve control value while clear or replace the throttle valve.

15. Steering Angle Sensor (SAS) calibration, calibrates the steering wheel to straight ahead, or recalibrates SAS while steering part replacement.

16. ABS Bleeding, release the air to restore ABS brake sensitivity,or relearn while ABS replaced.

17. Injector coding, relearn the injector control parameter while the injector renewed or replaced.

18. BCM(Body Stability), This function supports routine maintenance of DSC modules,for example, reset or delete the adaptation values, start-up the unit.

19. ECM(Engine), This function supports routine maintenance of engine modules, for example, reset or delete the adaptation values, calculate fuel consumption.

20. TCM (Trans adaption),This function supports routine maintenance of transmission modules, for example, reset adaptation values, adjust the oil level.

21. Engine ldle, This correction can be executed when the idle speed fault is resolved. Adjust the engine speed of the car at idle speed.

22. Air Suspension, Try reset electronic suspension air ride with the message system close all doors flip through message system go to suspension reset or off.

23. TPMS service function include displaying sensor IDs from the vehicle`s ECu,inputting TPMS sensor replacement lDs and testing sensors.

24. ACS(Air Conditioner),this function supports routine maintenance of air condition modules, for example, air conditioning system adaption reset, reset air conditioning compressor, run in air conditioning compressor,stepper motor initialization.

25. Head Lamp is about the headlamp maintenance, maintenance and other related operations (including AFS setting), and then perform this function for calibration.

26. Seat, after repairing or replacing the seat position drive motor, it is necessary to perform relevant functions for calibration.

27. DER, after repairing or replacing the window lift motor, it is necessary to perform relevant functions for calibration.

28. The Print Data function allows you printing out diagnostic data recorded by the scan tool or customized test reports.

29. Battery test allows you getting the voltage of battery with OBD port by the scan tool when the engine starts.

30. DTC Library to lookup when user is operating this tool.

31. Upgrade Via Computer.

32. Multi-language:English, German, Dutch, Spanish, French and more.

Note!

.Certain functions may be limited from the vehicle manufacturer due to therequirement of a special factory access code.

.This scan tool covers over 20 years of models, so some functions may not beavailable on all years/models

PRODUCT DETAILS DISPLAY

Dimensions(WHD)

206104.132.6 mm (L x W x H)

Display

4.0″ TFT LCD, 480*320 Pixels

OBDII FUNCTION

1. Read Codes

2. Erase Codes

3. I/M Readiness – I/M Readiness indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing. 4. DataStream

5. Freeze Frame – When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.

6. O2 Sensor Test – This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle's on-board computer.

7. On-Board Monitoring – This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.

8. Evap System Test – The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.

9. Vehicle Information – The option displays the vehicle identification number (VIN),the calibration verification number (CVN), and other information of the test vehicle.

10. Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes.

11. Turn off Check Engine Light (MIL), clear codes and reset monitors

12. Read live PCM DataStream

13. Support CAN (Controller Area Network) and all other

14. Multilingual menu and DTC definitions- English, Spanish, and German, etc.

15. Read pending DTCs

16. Read permanent DTCs

17. DTCs search

18. Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.

19. Works on most of 2001 and later OBDII compliant PETROL European vehicles

20. Works on most of 2004 and later OBDII compliant DIESEL European vehicles

21. Works on most of 1996 and later OBDII compliant US and Asian vehicles

22. View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.

23. Comprehensive Help, Including OBD Parameter, Mode Explanations & More.

PRODUCT SPECIFICATIONS

Display: 4.0″ TFT LCD, 480*320 Pixels

Operation Temperature: 0°C ~ 50°C

Storage Temperature: –20°C ~ 70°C

Operating Voltage: 9 ~ 18V

Operating Current: 150mA@12V (Typical)

Power Consumption: 1.8W (Typical)

Dimension: 206104.132.6 mm (L x W x H)
