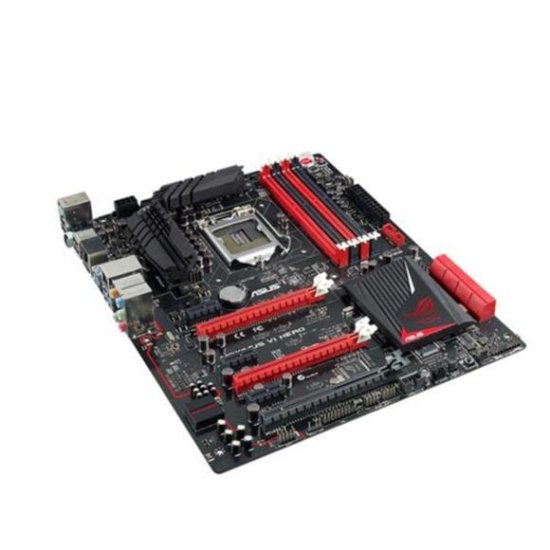

Osnovna plošča Asus Maximus VI Hero prihaja s podnožjem Intel LGA 1150 in podpira vgradnjo procesorjev 4th Generation Core i7/Core i5/Core i3/Pentium®/Celeron. Osnovna plošča formata ATX Form Factor 30.5 × 24,4 cm ima vezni čip Intel Z87.

Odlikuje jo 4 x DIMM DDR3 pomnilnik do skupno 32 GB kapacitete.

Prihaja z mrežno kartico Intel I217V Gigabit LAN in zvočno kartico ROG SupremeFX 8-Channel High Definition Audio CODEC.

Tehnične podrobnosti:

• razširitvene reže:
• 2 x PCIe 3.0/2.0 x16 (x16 or dual x8, red)
• 1 x PCIe 2.0 x16 (black) *1
• 3 x PCIe 2.0 x1 *2
• notranji priključki:
• 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 1 x TPM connector(s)
• 8 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s)
• 1 x CPU OPT Fan connector(s)
• 3 x Chassis Fan connector(s)
• 1 x S/PDIF out header(s)
• 1 × 8-pin EATX 12 V Power connector
• 1 × 24-pin EATX Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x DirectKey Button(s)
• 1 x DRCT header(s)
• 1 x MemOK! button(s)
• 1 x Power-on button(s)
• 1 x Reset button(s)
• 1 x Clear CMOS jumper(s)
• 1 x ROG extension (ROG_EXT) header(s)
• zunanji priključki:
• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 4 x USB 3.0
• 4 x USB 2.0
• 1 x Optical S/PDIF out
• 6 x Audio jack(s)
• 1 x USB BIOS Flashback Button(s)
• grafika: DA / integriran grafični procesor
• RAID: DA (0,1,5,10)
• pomnilnik: 4 x DIMM DDR3 (2800(O.C.)/2666(O.C.)/2600(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333MHz) do skupno 32GB kapacitete, dual channel
• dodatno: Sonic Radar, GameFirst II + Intel LAN, SupremeFX, Extreme Engine Digi+ III, Upgraded UEFI BIOS, ROG SSD Secure Erase, USB BIOS Flashback, SLI/CrossFire On-Demand, ROG RAMDisk, Ai Suite III, CPU Level Up, USB 3.0 Boost, 2nd T-Topology, Dual Intelligent Processors 4, ROG CPU-Z, Mem TweakIt, GreenASUS

Garancija: 3 leta
