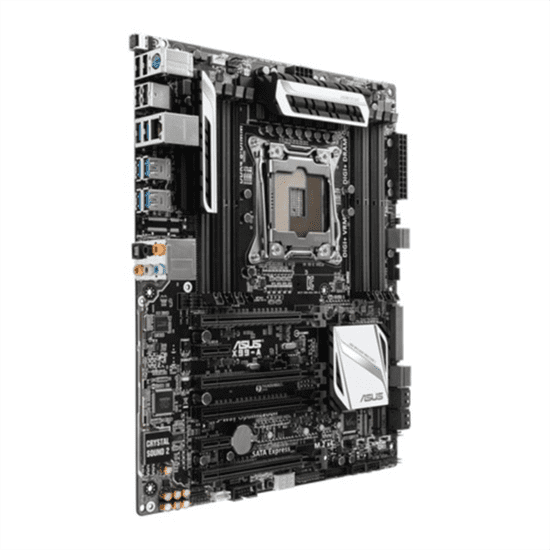

ASUS X99– je odlična matična plošča za Intel i7 procesorje na podnožju INTEL 2011-v3 Plošča je odlična izbira za uporabo tako v pisarniških kot tudi multimedijskih računalnikih. Podjetje Asus je poznano predvsem po izdelavi kakovostnih matičnih plošč. Matična plošča temelji na podnožju INTEL 2011-v3.

Tehnične podrobnosti:

• Podnožje: INTEL 2011-v3
• za procesorje: Intel Socket 2011 za Core™ i7 Procesorje
• format: ATX Form Factor 30.5 cm x 24.4 cm
• vezni čip: Intel X99
• pomnilnik: 8 x DIMM DDR4 (3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133MHz) do skupno 64GB kapacitete, quad channel podpora
• grafika: NVIDIA® Quad-GPU SLI, NVIDIA® 3-Way SLI™, AMD Quad-GPU CrossFireX™, AMD 3-Way CrossFireX™
• radid: Da (0,1,5,10)
• razširitvene reže: 40-Lane CPU- 3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8) *1, 28-Lane CPU-, 3 x PCIe 3.0/2.0 x16 ( x16, x16/x8, x16/x8/x4) *2, 1 x PCIe 2.0 x16 (x4 mode) *3 ,2 x PCIe 2.0 x1 (x1 mode) *3
• mrežna kartica: Intel® I218V, 1 x Gigabit LAN Controller(s)
• zvočna akrtica: Realtek® ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 2

Notranji priključki:

1 x AAFP connector
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x SATA Express connector: gray,
1 x M.2 Socket 3 with M Key design, type 2242/2260/2280/22110 storage devices support (Support PCIE SSD only)
1 x TPM connector(s)
1 x COM port(s) connector(s)
8 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 × 4 -pin)
1 x CPU OPT Fan connector(s) (1 × 4 -pin)
4 x Chassis Fan connector(s) (4 × 4 -pin)
1 x S/PDIF out header(s)
1 x Thunderbolt header(s)
1 × 24-pin EATX Power connector(s)
1 × 8-pin ATX 12V Power connector(s)
1 x EZ XMP switch
1 x System panel(s) (Q-Connector)
1 x Chassis Intrusion connector(s)
1 x DRCT header(s)
1 x MemOK! button(s)
1 x Thermal sensor connector(s)
1 x TPU switch(es)
1 x EPU switch(es)
1 x CPU/DRAM overvoltage jumper(s)
1 x Power-on button(s)
1 x Reset button(s)
1 x Clear CMOS jumper(s)
1 × 5-pin EXT_FAN(Extension Fan) connector

Zunanji priključki:

1 x PS/2 keyboard/mouse combo port(s)
1 x LAN (RJ45) port(s)
6 x USB 3.0 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS Flashback Button(s)

Dodatno:

5-Way Optimization by Dual Intelligent Processors 5

• 5 Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.

ASUS 5X Protection :

• ASUS DIGI+ VRM – 8 Phase digital power design
• ASUS Enhanced DRAM Overcurrent Protection – Short circuit damage prevention
• ASUS ESD Guards – Enhanced ESD protection
• ASUS High-Quality 5K-Hour Solid Capacitors – 2.5× long lifespan with excellent durability
• ASUS Stainless Steel Back I/O – 3× more durable corrosion-resistant coating

ASUS TPU :

• Auto Tuning
• GPU Boost
• TPU switch

ASUS EPU :

• EPU switch

ASUS Digital Power Design :

• Industry leading Digital 8 Phase Power Design
• Industry leading Digital 4 Phase DRAM Power Design
• CPU Power Utility
• DRAM Power Utility

ASUS Exclusive Features :

• Remote GO!
• USB BIOS Flashback
• MemOK!
• AI Suite 3
• Ai Charger+
• USB Charger+
• M.2 & SATA Express
• Anti-Surge
• Onboard Button : Power/Reset
• ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
• USB 3.0 Boost
• Disk Unlocker
• Turbo LAN
• Crystal Sound 2

Interactive HomeCloud

• Media Streamer

ASUS EZ DIY :

• Precision Tweaker 2
• ASUS O.C. Tuner
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 2
• ASUS USB BIOS Flashback
• Push Notice

  ASUS Q-Design :

• ASUS Q-Shield
• ASUS Q-Code
• ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
• ASUS Q-Slot
• ASUS Q-DIMM
• ASUS Q-Connector

Special Memory O.C. Design Turbo App Fan Xpert 3
