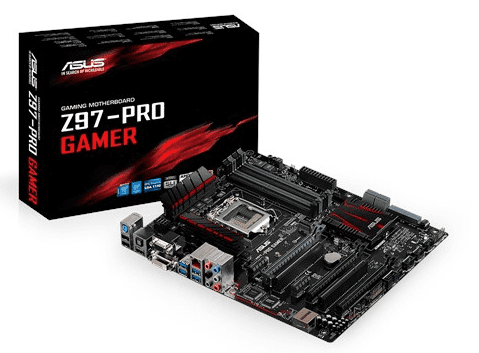

Osnovna plošča ASUS Z97-PRO GAMER je osnovni gradnik računalnika.

Podpira procesorje s podnožjem Intel LGA 1150. Vanjo lahko vstavite štiri pomnilniške kartice DDR3, do skupno najvišje kapacitete 32 GB.

Plošča ima že vgrajeno integrirano grafično kartico Intel HD Graphics. Že vgrajeni sta tudi mrežna kartica Intel I218V Gigabit LAN in zvočna kartica SupremeFX 8-Channel High Definition.

Tehnične podrobnosti:

• Podnožje: Intel LGA 1150
• Za procesorje: 5th/new4th/4th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron®
• Format: ATX Form Factor 30.5 × 24.4 cm
• Vezni čip: Intel Z97
• Pomnilnik: 4 x DIMM DDR3 (3200(O.C.)/3100(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666(O.C.)/2500(O.C.)/2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333MHz) do skupno 32GB kapacitete, dual channel podpora
• Integrirana grafična kartica: DA / Intel® HD Graphics
• Raid: DA (0,1,5,10), Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology
• Razširitvene reže:
• 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
• 1 x PCIe 2.0 x16 (x4 mode)
• 2 x PCIe 2.0 x1
• 2 x PCI
• Mrežna kartica: Intel® I218V Gigabit LAN Controller(s), featuring GAMEFIRST II
• Zvočna kartica: SupremeFX 8-Channel High Definition Audio CODEC
• Notranji priključki:
• 1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin)
• 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
• 1 x SATA Express connector: gray, compatible with 2 x SATA 6.0 Gb/s ports
• 1 x M.2 Socket 3 for M Key, type 2260/2280 devices
• 1 x TPM header
• 1 x COM port(s) connector(s)
• 4 x SATA 6Gb/s connector(s)
• 1 x CPU Fan connector(s) (1 × 4 -pin)
• 1 x CPU OPT Fan connector(s) (1 × 4 -pin)
• 3 x Chassis Fan connector(s) (3 × 4 -pin)
• 1 x S/PDIF out header(s)
• 1 × 24-pin EATX Power connector(s)
• 1 × 8-pin ATX 12V Power connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x System panel(s)
• 1 x Thermal sensor connector(s)
• 1 x Clear CMOS jumper(s)
• Zunanji priključki:
• 1 x PS/2 keyboard/mouse combo port(s)
• 1 x DVI-D
• 1 x D-Sub
• 1 x HDMI
• 1 x LAN (RJ45) port(s)
• 4 x USB 3.0 (blue)
• 2 x USB 2.0
• 1 x Optical S/PDIF out
• 6 x Audio jack(s)
• Dodatno:

ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :

• 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ Power Control, Fan Xpert 3, and Turbo App

Gamer's Guardian:

• ESD Guards on LAN, Audio, KBMS and USB3.0/2.0 ports
• DRAM Overcurrent Protection
• 10K Black Metallic Capacitors
• Stainless Steel Back I/O
• DIGI+ VRM

ASUS TPU :

• Auto Tuning
• TurboV
• GPU Boost without switch

ASUS EPU :

• EPU

ASUS Exclusive Features :

• AI Suite 3
• Ai Charger
• ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
• USB 3.0 Boost
• Disk Unlocker

Interactive HomeCloud

• Media Streamer

ASUS Quiet Thermal Solution :

• Stylish Fanless Design Heat-sink solution
• ASUS Fan Xpert 3

ASUS EZ DIY :

• ASUS CrashFree BIOS 3
• ASUS EZ Flash 2
• ASUS UEFI BIOS EZ Mode
• Push Notice

ASUS Q-Design :

• ASUS Q-Shield
• ASUS Q-Slot
• ASUS Q-DIMM

Garancija: 3 leta

Uradna stran izdelka
