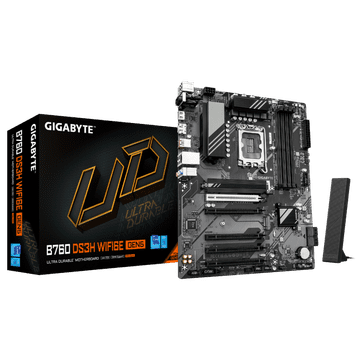

Gigabyte B760 DS3H WF6E GEN5, DDR5, SATA3, USB3.2Gen2, DP, WiFi, LGA1700 ATX
Gigabyte B760 DS3H WF6E GEN5, DDR5, SATA3, USB3.2Gen2, DP, WiFi, LGA1700 ATX
Partnerska prodaja
Kupite Intel LGA1700 podnožje za procesorje 12., 13. in 14. generacije. Podpira DDR5 pomnilnik do približno 7600 MHz (OC), PCIe 5.0 x16, 2.5 GbE omrežje, Wi-Fi 6E, dva M.2 reže in številne notranje ter zunanje priključke.
Celoten opis
145,18 €
Način in ceno dostave določi
Elkotex d.o.o.
145,18 €
25.11.2025 -
26.11.2025
predvidena dostava na dom
Predstavitev
#html-body [data-pb-style=HG6H0LR]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}
PODNOŽJE: Intel LGA1700
ZA PROCESORJE: Intel Core 12./13./14. generacije
FORMAT: ATX format 30.5 cm × 24.4 cm
VEZNI ČIP: Intel B760
POMNILNIK:
4 x DDR5 DIMM non-ECC, podpora za frekvence do 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400 / 6200 / 6000 / 5800 / 5600 MHz, do skupno 256 GB kapacitete, Dual channel memory architecture, podpora za non-ECC Un-buffered DIMM module, podpora za XMP profile
RAID: DA (0,1,5,10)
RAZŠIRITVENE REŽE:
1 x PCI Express 5.0 x16
4 x PCI Express 3.0 x1
MREŽNA KARTICA: Realtek 2.5 GbE LAN chip
ZVOČNA KARTICA: Realtek Audio codec High Definition Audio (2/4/5.1/7.1-channel)
NOTRANJI PRIKLJUČKI:
1 × 24-pin ATX main power connector
1 × 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumpe
ZUNANJI PRIKLJUČKI:
1 x PS/2 keyboard/mouse port
2 x antenna connectors (2T2R)
1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 2.0/1.1 ports
1 x HDMI port (Note)
1 x DisplayPort (Note)
1 x RJ-45 port
3 x audio jacks
DODATNO:
6+2+1 fazni Hybrid VRM
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
BIOS
1 × 256 Mbit flash
AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
Norton Internet Security (OEM)
LAN bandwidth management software
