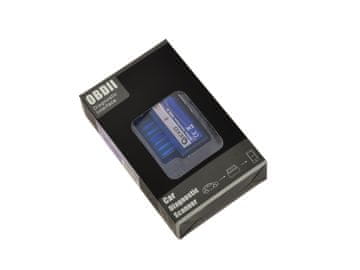

Tester vmesnika OBD II (100)

Tester vmesnika OBD II

Diagnostični vmesnik OBD II, ki se uporablja v veliki večini evropskih, ameriških in japonskih avtomobilov. Opremljen je z modulom Bluetooth, ki omogoča brezžično povezavo in diagnostiko z uporabo prenosnika, tablice ali pametnega telefona.

Značilnosti izdelka

• najbolj priljubljen priključek OBD II
• Modul Bluetooth
• vmesnik, ki se napaja neposredno iz vtičnice OBD II – zunanje napajanje ni potrebno

Primeri funkcij vmesnika:

• Branje zabeleženih kod napak, ki so povzročile prižig opozorilne lučke MIL
• Merjenje moči motorja (KM)
• Brisanje opozorilne lučke CHECK ENGINE
• Branje in brisanje napak OBD II – vsi protokoli
• Branje in brisanje čakajočih napak (ko opozorilna lučka še ne zasveti)
• Merjenje parametrov, kot je pospešek od 0 do 100 km/h
• Branje splošnih in proizvajalčevih specifičnih napak
• Preverjanje pomena kod napak
• Spremljanje parametrov delovanja motorja v realnem času (podatki v živo)
• Branje parametrov v realnem času (spletno)
• Ogled zamrznjenih sličic (zamrznjeni okvirji)

Zahteve strojne opreme:

• Vtičnica OBD II v avtomobilu
• pametni telefon, tablica, prenosnik ali druga naprava z modulom Bluetooth in operacijskim sistemom Android, Windows, Windows Mobile, Symbian

Podprti protokoli

• ISO 9141–2 (5 baud init, 10,4 kbaud)
• ISO KWP (5 baud init, 10,4 kbaud)
• ISO KWP (hitra inicializacija, 10,4 kbaud)
• ISO CAN (11-bitni ID, 500 kbaud)
• ISO CAN (29-bitni ID, 500 kbaud)
• ISO CAN (11-bitni ID, 250 kbaud)
• ISO CAN (29-bitni ID, 250 kbaud)

SEZNAM PODPRTIH MODELOV AVTOMOBILOV:

Evropski osebni avtomobili, terenska vozila in kombiji od leta 2001 (nekateri modeli prej):

• Alfa Romeo: 147, 156, 159, 166, GT, GTV, Brera, Crosswagon, Spider, Sportwagon
• Audi: A2, A3, S3, A4, S4, A6, S6, A8, S8, Allroad, Kabriolet, Kupe, Q7, Quattro, RS2, RS4, RS6, TT, V8
• BMW: serija 1 – 116, 118, 120, 130, serija 3 – 316, 318, 320, 323, 325, 328, 330, 335, serija 5 – 518, 520, 523, 524, 525, 528, 530, 535, 540, 545, 550, serija 6 – 630, 635, 645, 650, serija 7 – 725, 728, 730, 732, 735, 740, 745, 750, 760, serija 8 – 840, 850, MPower – M3, M5, M6, Z4 M, serija X – X3, X5, serija Z – Z3, Z4, Z8
• Citroen: Berlingo, C1, C2, C3, C4, C5, C6, C8, CX, Evasion, Jumpy, Saxo, Xantia, Xsara, Xsara Picasso
• Dacia: Logan, Pick up
• Fiat: Albea, Barchetta, Brava, Bravo, Coupe, Croma, Dino, Doblo, Ducato, Grande Punto, Idea, Marea, Marengo, Multipla, Palio Weekend, Palio, Panda, Punto, Scudo, Sedici, Siena, Stilo, Ulysse
• Ford: Aerostar, Bronco, Cougar, Courier, Crown, Ecoline, Escape, Escort, Excursion, Expedition, Explorer, Express, F150, F250, F350, Fairlane, Falcon, Fiesta, Focus, Focus C-Max, Fusion, GT, Galaxy ,Granada, Ka, Maverick, StreetKa, Ka, Maverick, Mondeo, Mustang, Probe, Puma, Ranger, S-max, Thunderbird, Tourneo, Taurus, Transit
• Jaguar: Daimler, E-type, S-type, X-type, XJR, XJS, XJ, XJ6, XJ8, XJ12, XJ40, XJR, XJS, XJSC, XK,
• Land Rover: Defender, Discovery, Freelander, Range Rover, Range Rover Sport
• Mercedes-Benz: razred A, razred B, razred C, razred CE, razred CL, razred CLK, razred CLS, razred E, razred G, razred GL, razred ML, razred R, razred S, razred SL, razred SLK, SLR, Sprinter, razred V V200, V220, V230, V280, Vaneo, Vario, Viano, Vito
• Mini: Cooper, Cooper S, ONE
• Opel: Agila, Antara, Arena, Astra, Calibra, Campo, Cavalier, Combo, Corsa, Frontera, GT, Merita, Monterey, Movano, Nova, Omega, Signum, Sintra, Speedster, Tigra, Vivaro, Vectra, Zafira
• Peugeot: 106, 107, 206, 207, 306, 307, 406, 407, 605, 607, 806, 807, 1007, Boxer, Expert, J5, Partner
• Porsche: 911, Boxster, Carrera GT, Cayenne, Cayman
• Renault: (samo novi modeli po 2002) Avantime, Clio, Coupe, Espace, Express, Fuego, Grand Espace, Grand Scenic, Kangoo, Laguna, Mascott, Master, Megane, Modus, Safrane, Scenic, Spider, Trafic, Twingo, Vel Satis
• Rover: 75, 600, 618, 620, 623, 800, 820, 825, 827
• Saab: 9–3, 9–5, 9–7X
• Seat: Alhambra, Altea, Arosa, Cordoba, Ibiza, Inca, Leon, Terra, Toledo
• Škoda: Fabia, Felicia, Octavia, Roomster, Superb
• Smart: Crossblade, ForFour, ForTwo, Roadster
• Volvo: 850, C70, Polar, S40, S60, S70, S80, S90, V40, V50, V70, V90, XC 70, XC 90
• Volkswagen: Bora, Buggy, Caddy, Corrado, Eos, Fox, Golf, Iltis, Jetta, Karmann Ghia, Kafer, LT, Lupo, New Beetle, Passat, Phaeton, Polo, Sharan, T3, T4, T5, Caravelle, Multivan, Shuttle, Taro, Touareg, Touran, Vento
• ameriški osebna vozila, SUV in kombiji od 1996:

Buick: Century, Elektra, Le Sabie, Park Avenue, Regal, Riviera, Roadmaster, Skylark

• Cadillac: Allante, BLS, CTS, Deville, Eldorado, Escalade, Fleetwood, SRX, STS, Seville, Kalos, Lacetti, Lumina, Malibu, Matiz, Nubira, Rezzo, S-10, SSR, Silverado, Suburban, Tahoe, Trailblazer, Trans Sport, Venture
• Chrysler: 300M, 300C, Crosssfire, Daytona, ES, GS, GTS, Grand Voyager, Le Baron, Neon, New Yorker, PT Cruiser, Pacifica, Saratoga, Sebring, Stratus, Valiant, Viper, Vision, Voyager
• Corvette: C3, C4, C5, C6
• Dodge: Caliber, Charger, Dakota, Durango, Grand Caravan, Hornet, Magnum, Neon, RAM, Stealth, Viper
• GMC: Envoy, Safari, Savana, Sierra, Sonoma, Syclone, Typhoon, Vandura, Yukon
• Hummer: H1, H2, H3
• Jeep: Cherokee, CJ, Comanche, Commander, Grand Cherokee, Renegade, Wagoneer, Liberty, Wrangler
• Lincoln: Aviator, Continental, LS, Mark VIII, Navigator, Town Car
• Oldsmobile: Bravada, Custom Cruiser, Cutlass, Delta 88, Silhouette, Supreme, Toronado
• Pontiac: 6000, Bonneville, Fiero, Firebird, G6, GTO, Grand-Am, Grand-Prix, Montana, Solstice, Sunbird, Sunfire, Targa, TransAm, Trans Sport, Vibe
• Japonski in azijski osebni avtomobili, SUV-ji in kombiji od leta 1996 naprej:
• Acura: MDX, NSX, RL, RSX, TL, TSX

Daewoo: Espero, Evanda, Kalos, Komando, Lacetti, Lanos, Leganza, Matiz, Musso, Nexia, Nubira, Tacuma, Tico

• Daihatsu: Applause, Charade, Charmant, Copen, Cuore, Feroza / Sportrak, Freeclimber, Gran Move, Hijet, Move, Rocky / Fourtrak, Sirion, Terios, YRV
• Honda: Accord, Aerodeck, City, Civic, Concerto, CR-V, CRX, Element, FR-V, HR-V, Integra, Jazz, Legend, NSX, Odyssey, Prelude, S2000
• Hyundai: Accent, Atos, Atos Prime, Coupe, Elantra, Galloper, Getz, Matrix, Pony, Excel, S-Coupe, Santa Fe, Santamo, Sonata, Terracan, Trajet, Tucson, XG 30, XG 350
• Infiniti: FX, G35, Q45, QX56
• Isuzu: Campo, Gemini, Midi, Pick-up, Troper
• Kia: Besta, Carens, Carnival, Cerato, Clarus, Opirus, Picanto, Shuma, Sorento, Sportage
• Lexus: GS300, GS430, GS450, GS470, IS200, IS220, IS250, IS300, LS400, LS430, LS460, LX470, RX300, RX330, RX400, SC400, SC430
• Mazda: 2, 3, 5, 6, 121, 323, 323F, 626, 929, MPV, MX-3, MX-5, MX-6, Millenia, RX-6, RX-7, RX-8, Xedos
• Mitsubishi: 3000GT, Carisma, Colt, Eclipse, Galant, Galloper, L200, L300, L400, Lancer, Pajero, Pajero Pini, Space Runner, Space Star, Space Wagon, Starion
• Nissan: 200SX, 240SX, 280SX, 300SX, 350Z, Almera, AlmeraTino, Laurel, Maxima, Micra, Murano, Navara, Note, Pathfinder, Patrol, Primera, Terrano, Urvan, Vanette, X-Trial
• SsangYong: Family, Korando, Kyron, Musso, Rexton, Rodius
• Subaru: Forester, Impreza, Justy, Legacy, Libero, OUTBACK, SVX
• Suzuki: Alto, Baleno, Cappuccino, Carry, Grand Vitara, Ignis, Jimny, LJ, Liana, SJ, SX4, Super-Carry, Swift, Vitara, Wagon R+, Previa, Prius, RAV 4, Sequoia, Sienna, Starlet, Supra, Tacoma, Tercel, Tundra, Yaris
